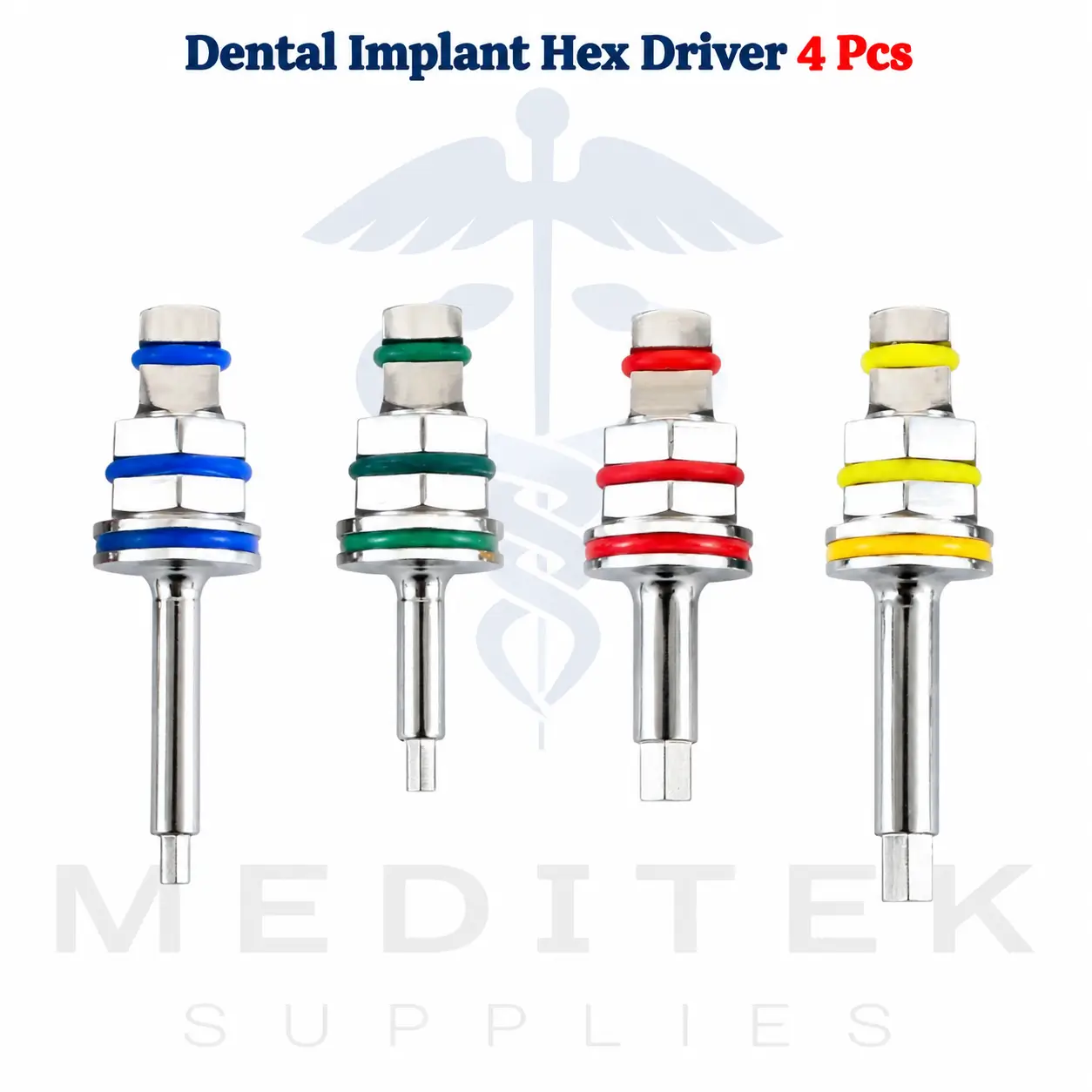

MediTek Dental Implant Hex Driver Set: 1.25mm and 2.42mm, Long and Short
Most implant cases need two hex sizes. The 1.25mm hex turns the small screws that hold abutments, cover screws, and healing caps. The 2.42mm hex fits the internal hex connection of the implant itself. This 4-piece dental implant hex driver set puts both sizes in one kit, each in a long and a short length, so you always have the right driver ready on the tray.
Every implant hex driver is made from polished, medical-grade stainless steel and fits standard torque and ratchet wrenches. It is a practical multi driver set for general dentists, oral surgeons, periodontists, and dental labs working with internal hex implant systems.
What Is Included in the 4-Piece Hex Driver Set
- 1 x 1.25mm Long Hex Driver: for abutment and cover screws in deeper sites or under thick tissue
- 1 x 1.25mm Short Hex Driver: for abutment and cover screws in back teeth or tight spaces
- 1 x 2.42mm Long Hex Driver: for internal hex implants that sit deeper or need extra reach
- 1 x 2.42mm Short Hex Driver: for internal hex implants where mouth opening is limited
Which Hex Driver Size Do You Need?
1.25mm Hex Driver for Abutment and Cover Screws
The 1.25mm (.050 inch) hex is the most common prosthetic screw size in implant dentistry. Use this dental hex driver for:
- Abutment screws
- Cover screws after implant placement
- Healing abutments
- Impression coping and transfer screws
2.42mm Hex Driver for Internal Hex Implants
The 2.42mm hex matches the internal hex of the implant body on many standard platform systems. Use it to place, adjust, or remove internal hex implants when working with a ratchet.
Long vs Short Driver Length
- Short drivers work best in molar and premolar sites, or with patients who cannot open wide. They also give you closer tactile control.
- Long drivers help in front teeth, deeper implants, thick gum tissue, or sites crowded by neighboring teeth.
Key Features of This Dental Hex Driver Kit
- Two sizes, two lengths: covers both prosthetic and implant-level hex work in one set
- Universal ratchet fit: works with 4.0mm square ratchet wrenches and 6.35mm hex torque wrenches
- Double silicone rings: keep each driver firmly seated in the wrench so it does not slip during use
- Medical-grade stainless steel: polished finish that resists corrosion and holds its shape
- Reusable and autoclavable: handles repeated sterilization cycles
- Non-slip, ergonomic design: steady grip for precise screw tightening and loosening
Hex Driver Compatibility with Major Implant Systems
The 1.25mm and 2.42mm hex sizes are shared by many internal hex systems, including Zimmer, Alpha Bio, MIS, and Implant Direct. This makes the set a cost-effective implant direct hex driver alternative for clinics that use more than one implant brand.
A Note on Astra Hex Driver Size
Astra Tech abutment screws are usually listed with a .050 inch (1.27mm) hex, which is very close to 1.25mm. Before final torque, always test the fit on the screw. If the driver feels loose in the screw head, do not use it, because a poor fit can strip the screw. Check your implant maker’s instrument guide when in doubt.
Care and Sterilization Tips
- Rinse off blood and debris right after use, then clean by hand or in an ultrasonic cleaner.
- Dry fully and autoclave following your clinic’s sterilization protocol.
- Inspect the hex tip before each case. A rounded or worn tip can strip screws, so replace it.
- Check that the silicone rings still hold the driver firmly in the wrench.
- Store drivers in a sterilization cassette to protect the tips.
Why Buy Your Implant Hex Driver Set from MediTek
Since 2017, MediTek has supplied dental instruments to more than 1,000 dental clinics. Our instruments are CE-certified and built from surgical-grade stainless steel. Every order includes:
- Free shipping across the US
- 14-day returns
- 24/7 customer support
Need drills, ratchets, or other tools for the same case? Browse our full range of dental implant instruments to complete your surgical tray.
Frequently Asked Questions
What is a hex driver used for in dental implants?
A hex driver dental implant tool fits the six-sided socket in a screw or implant. It is used to tighten and loosen abutment screws, cover screws, and healing caps, and to place or remove internal hex implants.
What is the difference between 1.25mm and 2.42mm hex drivers?
The 1.25mm driver fits small prosthetic screws such as abutment and cover screws. The 2.42mm driver fits the larger internal hex inside the implant body, so it is used for implant-level work.
Will this set work with Implant Direct implants?
Yes, for most cases. Implant Direct uses the 1.25mm hex for prosthetic screws, and its instruments use a 4.0mm square wrench connection, which these drivers fit. Always test fit before final torque.
What size hex driver does Astra Tech use?
Astra Tech abutment screws are commonly listed with a .050 inch (1.27mm) hex. A 1.25mm driver often fits, but check for a snug fit first. If there is any play, use the maker’s own driver.
Which ratchet wrenches does this hex driver set fit?
Each driver fits 4.0mm square ratchet wrenches and 6.35mm hex torque wrenches. The double silicone rings hold the driver securely in the wrench head.
Can these hex drivers be autoclaved?
Yes. All four drivers are made from medical-grade stainless steel and are fully autoclavable and reusable. Clean and dry them before each sterilization cycle.
Order Your Dental Implant Hex Driver Set Today
Keep both key hex sizes, in both lengths, ready for every implant case. Buy dental implant instruments online from MediTek and get precise, durable tools shipped free across the US.
